People & vehicles
Detection with a P2 detection head.
30 FPSReference rate
AIMORELOGY / EDGE VISION
OVISEdge AI Camera Module
Image capture, ISP, AI inference, video encoding and connectivity in one modular camera. Operates independently or connects to Raspberry Pi and other single-board computers.
Now available on Kickstarter
View on Kickstarter

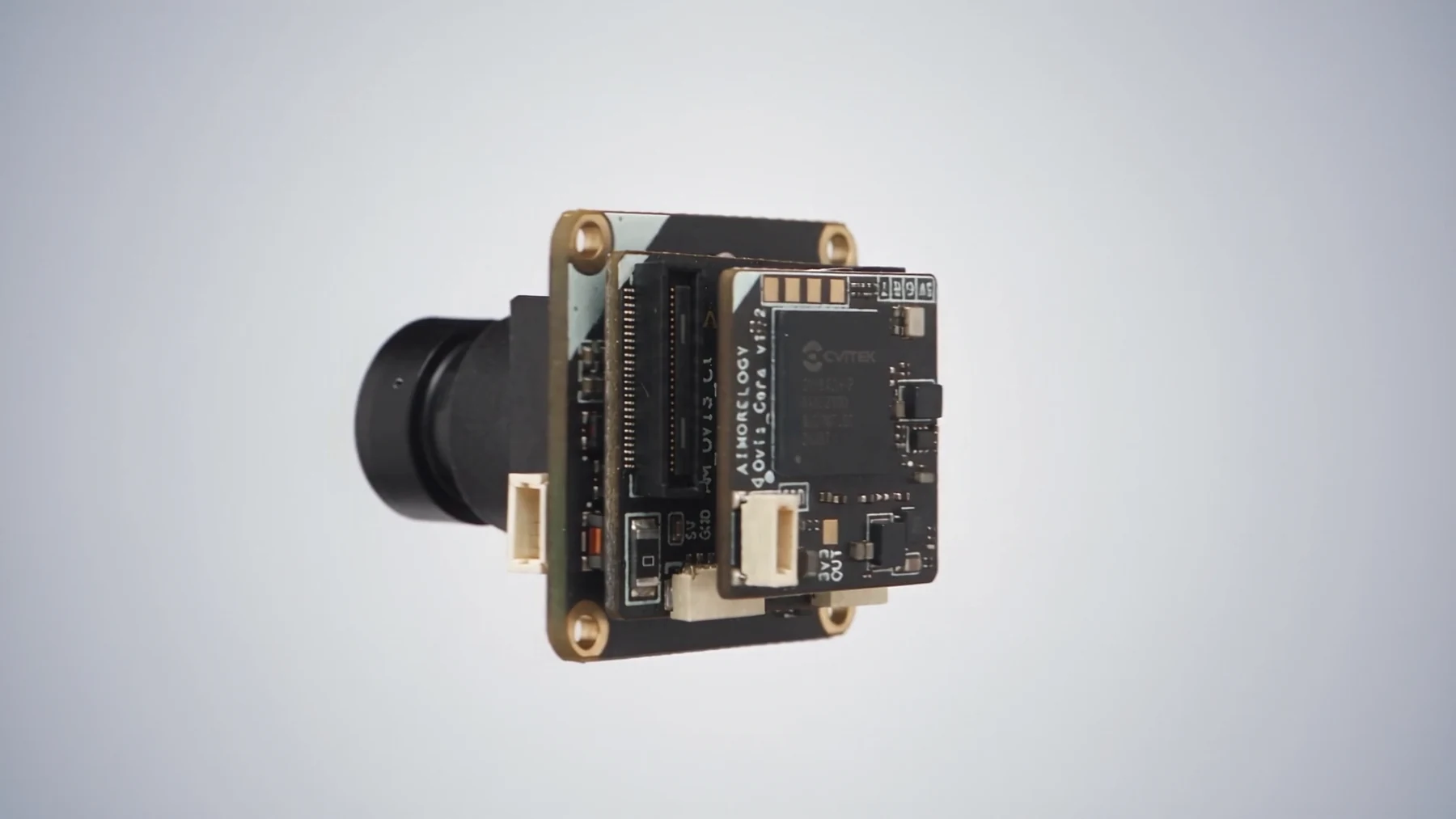

01 / MODULAR HARDWARE
Open-source HDK and modular expansion
The OVIS hardware development kit (HDK) is open source. Users can use the published hardware design resources to develop expansion boards for their applications and stack them with the sensor and core boards through board-to-board connectors.
28 × 28 × 31.7 mm
01
Sensor board
SC235HAI image sensor with 1080p at 60 FPS capture, paired with a 3.9 mm F1.0 lens.
02
OVIS core board
CV1842H-P processors and a 1.5 TOPS INT8 AI accelerator in a 20 × 20 × 5.7 mm core board.
03
User-designed expansion boards
Users can develop Wi-Fi, IMU or custom I/O expansion boards using the open-source HDK. The MS7024 CVBS output board is an existing expansion example.
Wi-Fi, IMU and custom I/O are customization options, not standard components of the listed kits.
01Image capture
02ISP processing
03AI inference
04Video encoding
05Connectivity
02 / ON-DEVICE VISION
Detection and tracking, on the camera.
Explore OVIS edge vision through recorded people, vehicle and drone detection and tracking demonstrations. Select a video to play.
Drone detection
Recorded low-altitude drone detection.
55 FPSReference rate
Street tracking
Vehicle target tracking in a street scene.
55 FPSReference rate
FPV simulation tracking
Target tracking using simulated FPV footage.
55 FPSReference rate
Reference performance: 30 FPS for people/vehicle detection with a P2 head; 55 FPS for drone detection and tracking. Results vary by model, input size, quantization, firmware and configuration. Recording frame rate is not inference frame rate.
ISP / AI-BNR
Low-light image processing.
Explore low-light imaging with ISP and AI-BNR processing. The following videos are separate demonstrations.
Low-light ISP demonstration
AI-ISP image processing demonstration
03 / WEB MANAGER
Configure devices. Deploy models.
Discover cameras, adjust video parameters and deploy models through a browser-based management interface.

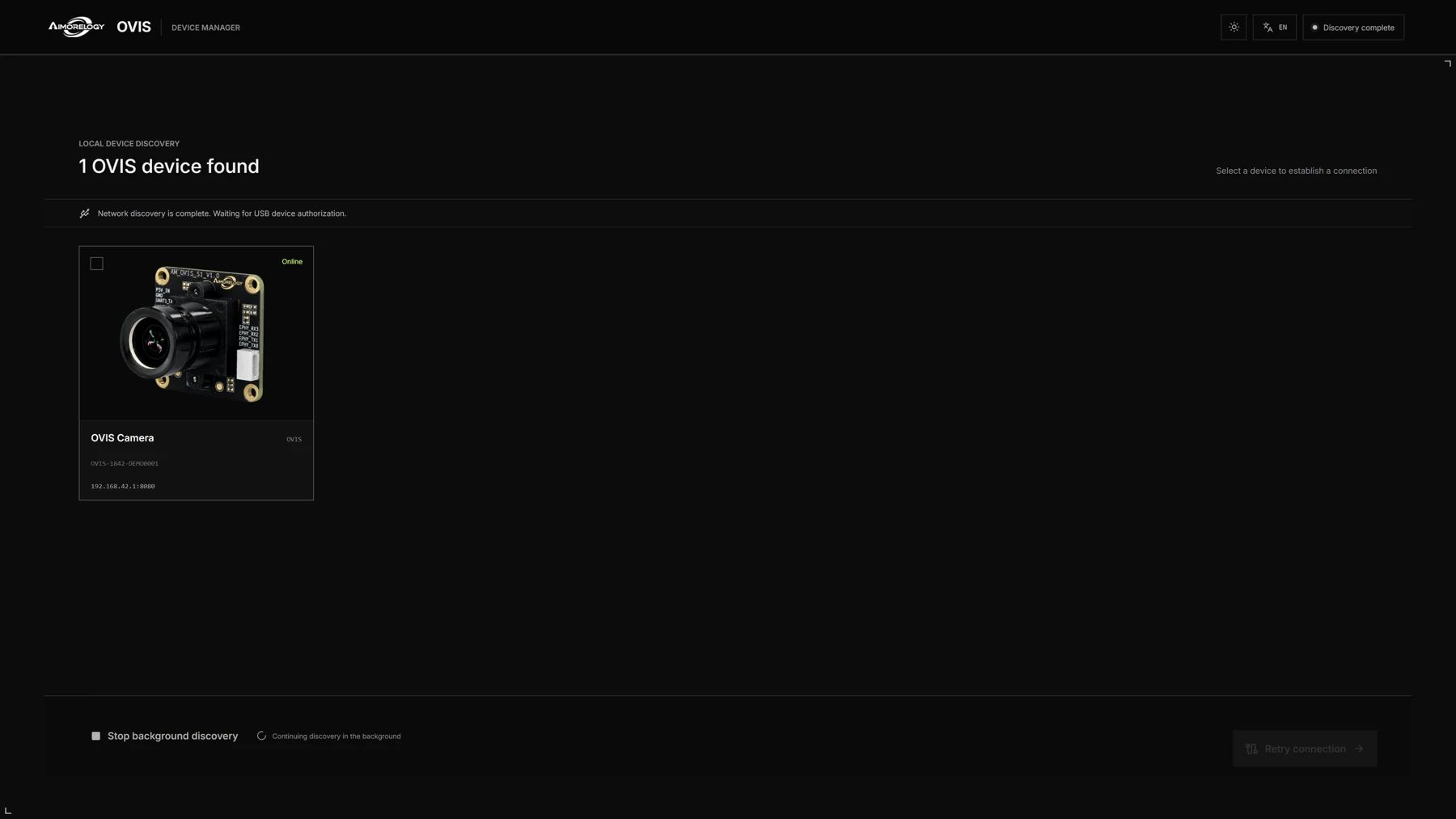

Discover devices and review connection status. Screenshots show demonstration states of the management interface.
Open Web Manager04 / TECHNICAL SPECIFICATIONS
OVIS Technical Specifications
Key specifications for OVIS processors, memory, storage, imaging, interfaces and mechanical dimensions.
Compute & system
01| SoC | CVITEK CV1842H-P |
|---|---|
| Processors | Arm Cortex-A53 @ 1.1 GHz + RISC-V C906 @ 800 MHz |
| AI acceleration | 1.5 TOPS @ INT8Supports INT8 / BF16. TOPS rating is for INT8. |
| Memory | SiP DDR3 2Gb (256MB) |
| Storage | 256MB NAND Flash |
| Operating system | Linux |
Imaging & optics
02| Image sensor | SC235HAI |
|---|---|
| Image capture | 1920 × 1080 @ 60 FPS |
| Lens model | YT10116-HD+IR0623 |
| Lens specifications | 3.9 mm · F1.0 · M12 × P0.5Manual focus, fixed aperture. |
| Reference FOV | H 81.3° / V 44.3° / D 95.5°Theoretical reference for a 1/2.9-inch image format; not a measured module FOV. |
| Image processing | ISP / AI-BNR |
Video & connectivity
03| Video codecs | H.265 / H.264 / MJPEG |
|---|---|
| Max. encoding | 8MP @ 25 FPSEncoding capability ceiling. Current sensor capture is 1080p at 60 FPS. |
| USB | USB 2.0 · 4Pin SH0.8 · UVC / NCM |
| Ethernet | 100 Mbps · 4Pin SH1.0 |
| Serial interfaces | 2 × UART |
| Streaming protocol | RTSP |
Mechanical & integration
04| Module dimensions | 28 × 28 × 31.7 mm |
|---|---|
| Core dimensions | 20 × 20 × 5.7 mm |
| Operating mode | Standalone or connected to Raspberry Pi and other single-board computers. |
| CVBS expansion | MS7024Requires the expansion board; see the three-board configuration. |
| Custom options | Wi-Fi / IMU / I/OWi-Fi, IMU and custom I/O are customization options, not standard components of the listed kits. |
Capture specifications, encoding capability and inference rates are separate metrics. Contact our engineers to confirm configuration, accessories and application compatibility.
05 / HARDWARE INTERFACES
Every board, clearly mapped.
Inspect components and connectors on the core, sensor and CVBS output boards. Select an image to enlarge it.

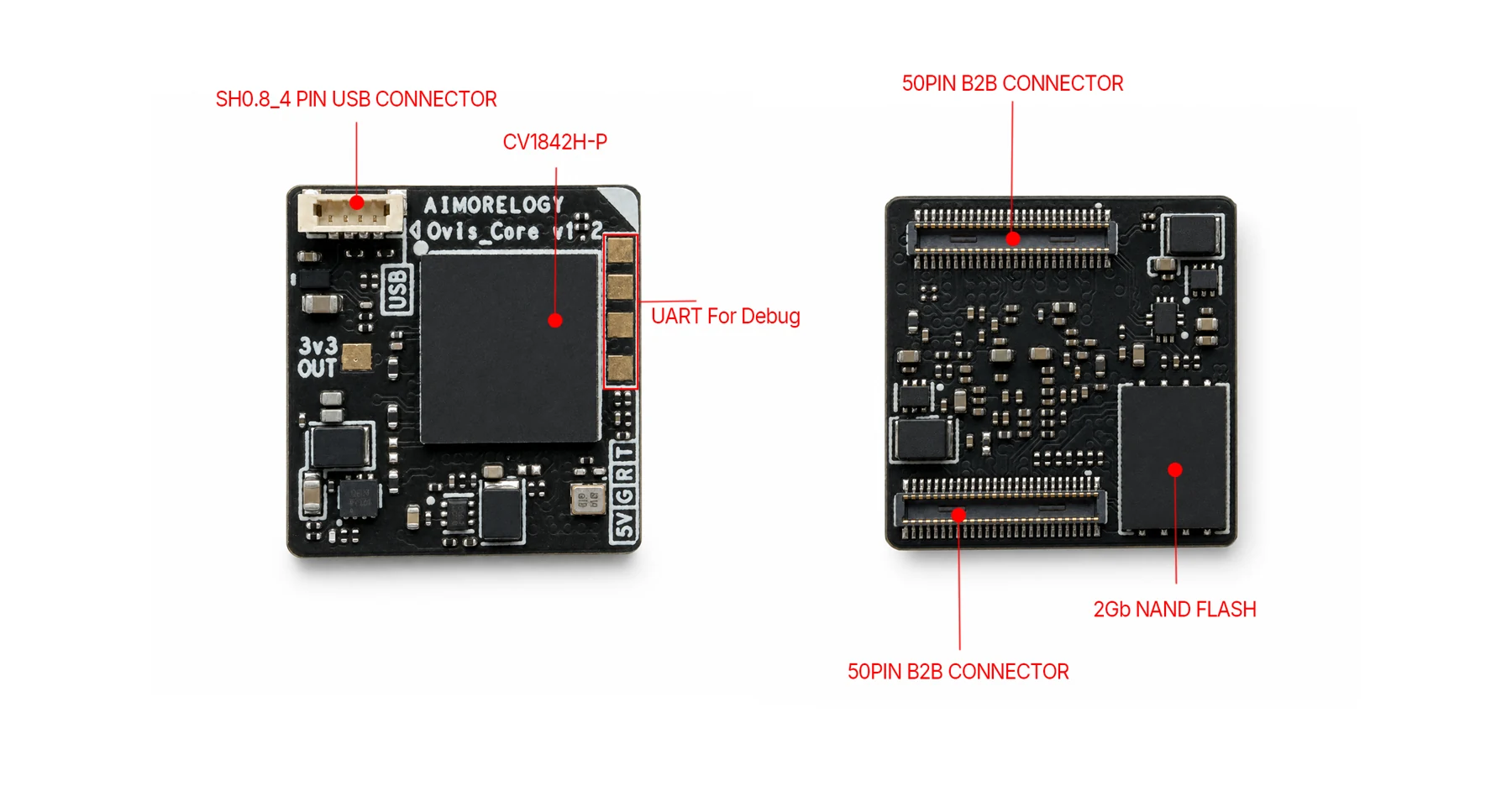

| Main component | CV1842H-P |
|---|---|
| Connectors | USB 2.0 · 4Pin SH0.8 50Pin B2B |
Select the image to inspect the full interface map
06 / HARDWARE CONFIGURATIONS
Two ways to configure OVIS.
Start with the sensor and core boards, or add the MS7024 output board for CVBS analog video.

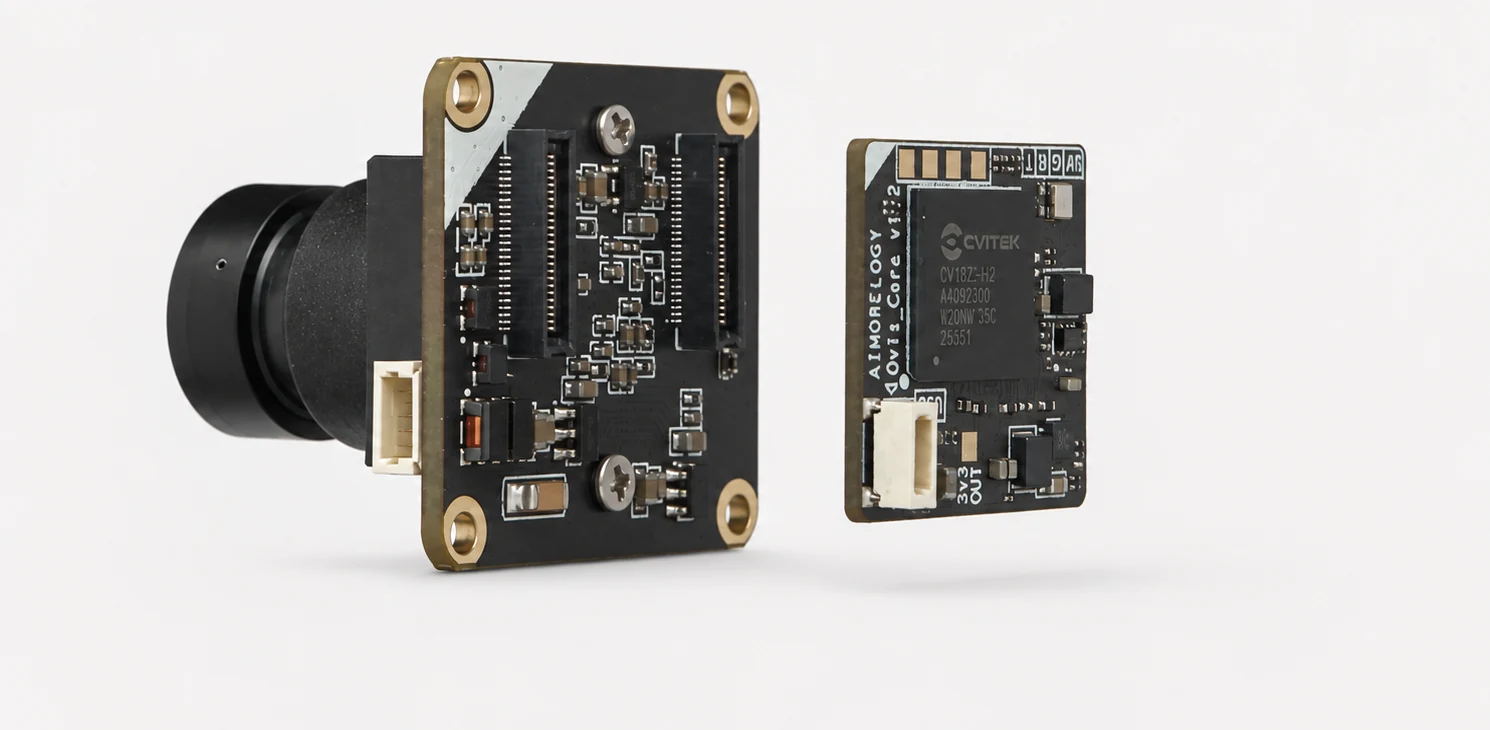

01 / OVISTWO BOARDS
Sensor + core
1 × sensor board and 1 × OVIS core board for vision development and system integration.

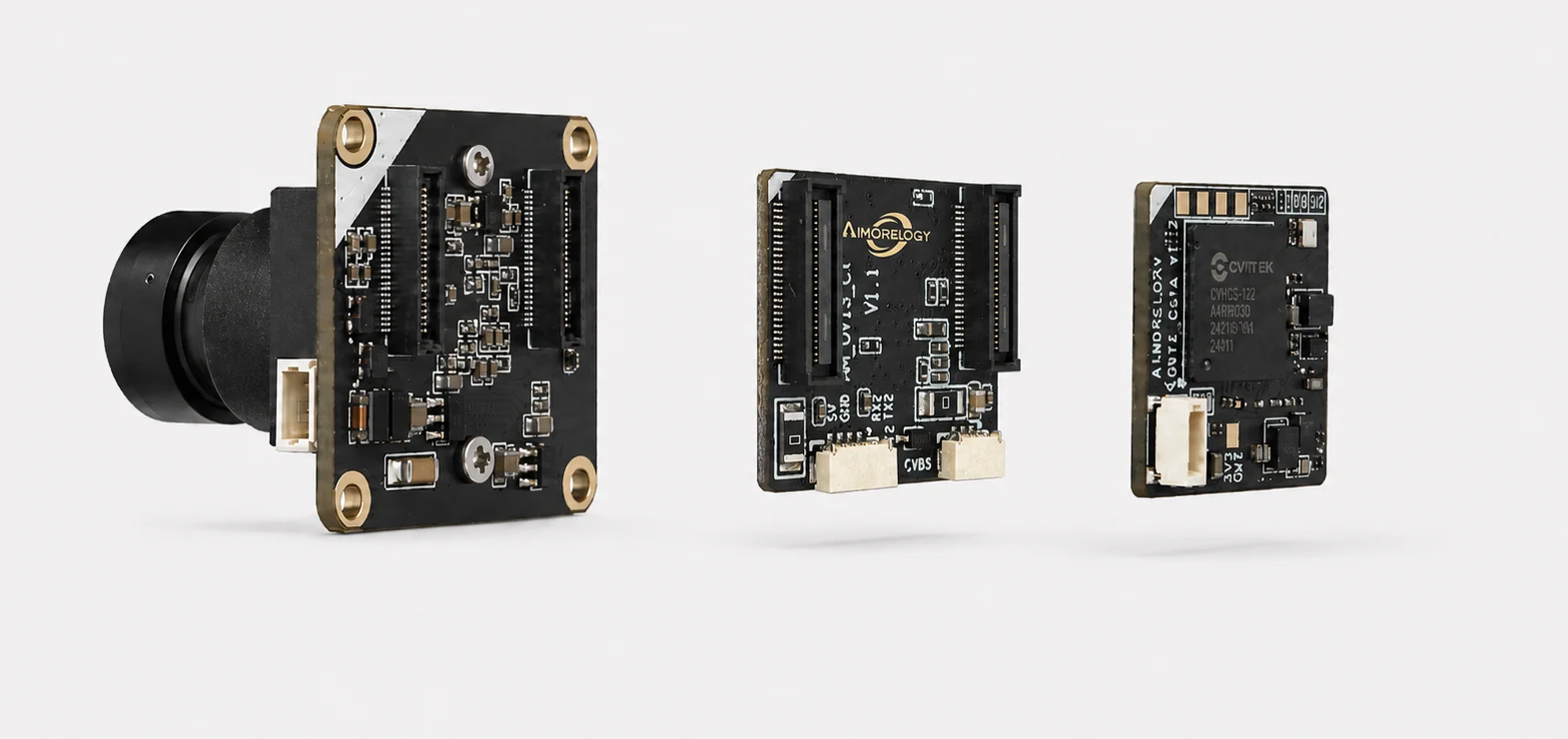

02 / OVISTHREE BOARDS / CVBS
Sensor + CVBS + core
1 × sensor board, 1 × MS7024 CVBS output board and 1 × OVIS core board.
| Board components | Sensor + core | Sensor + CVBS + core |
|---|---|---|
| Sensor board | 1 | 1 |
| OVIS core board | 1 | 1 |
| MS7024 CVBS output board | — | 1 |
Only confirmed board combinations are listed. Cables, additional accessories and delivered configuration are subject to the final sales list.
07 / DEVELOPMENT & SUPPORT
Start building with OVIS.
Find documentation, access the web manager or discuss hardware integration and custom expansion with our engineers.
SDK & development
Visit the OVIS SDK repository for development resources.
View SDKDocumentation
Integration guides and hardware development resources.
Read the docsWeb Manager
Access the OVIS browser-based configuration tool.
Open managerCommunity
Discuss integration and technical questions.
Visit the forumBUILD WITH OVIS
Talk to our engineersBring OVIS into your project.
Discuss board selection, connectivity and custom expansion with our team.
OVIS is intended for civilian applications only.
